M16 x 10mm Heat-Set Insert (for threaded-breech barrels)

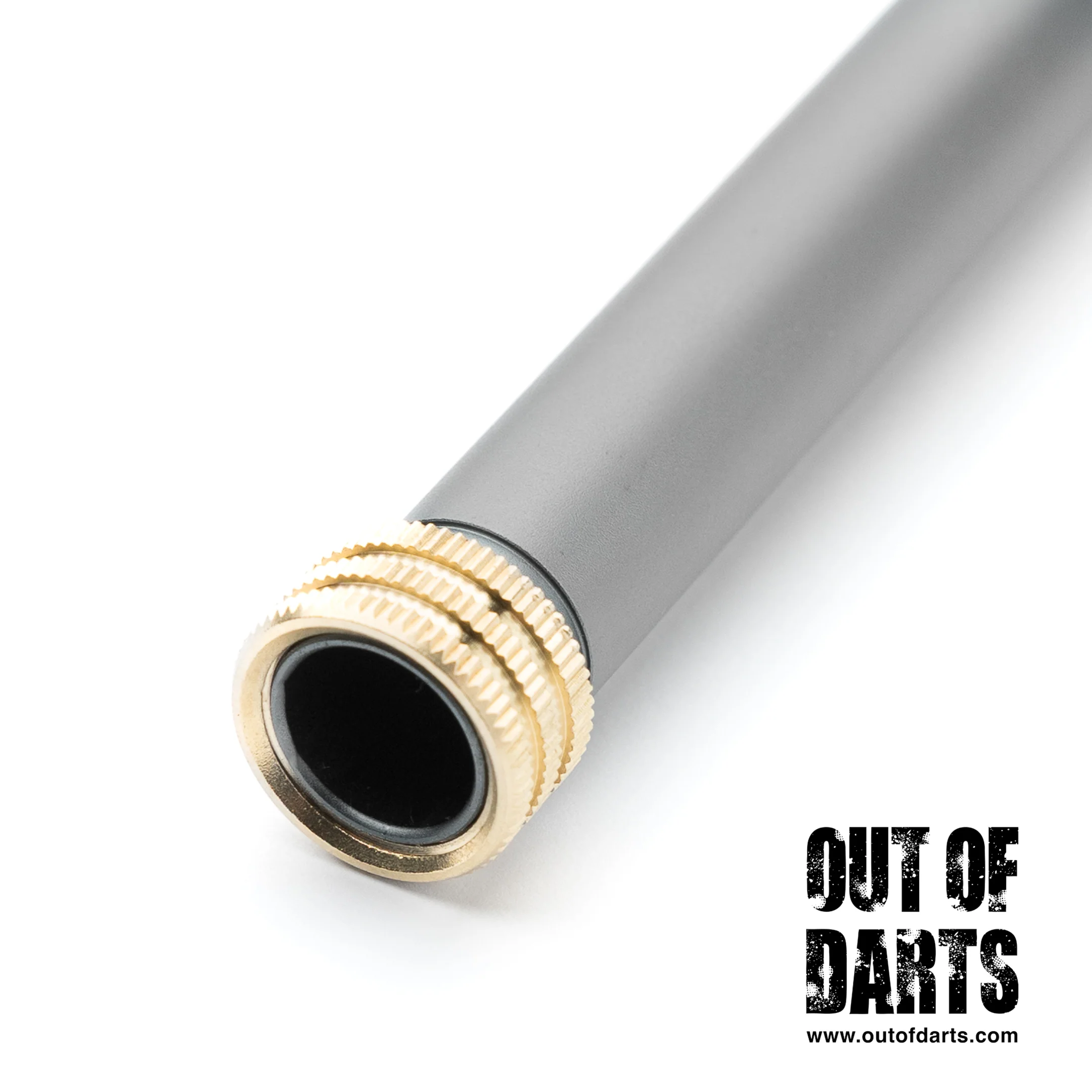

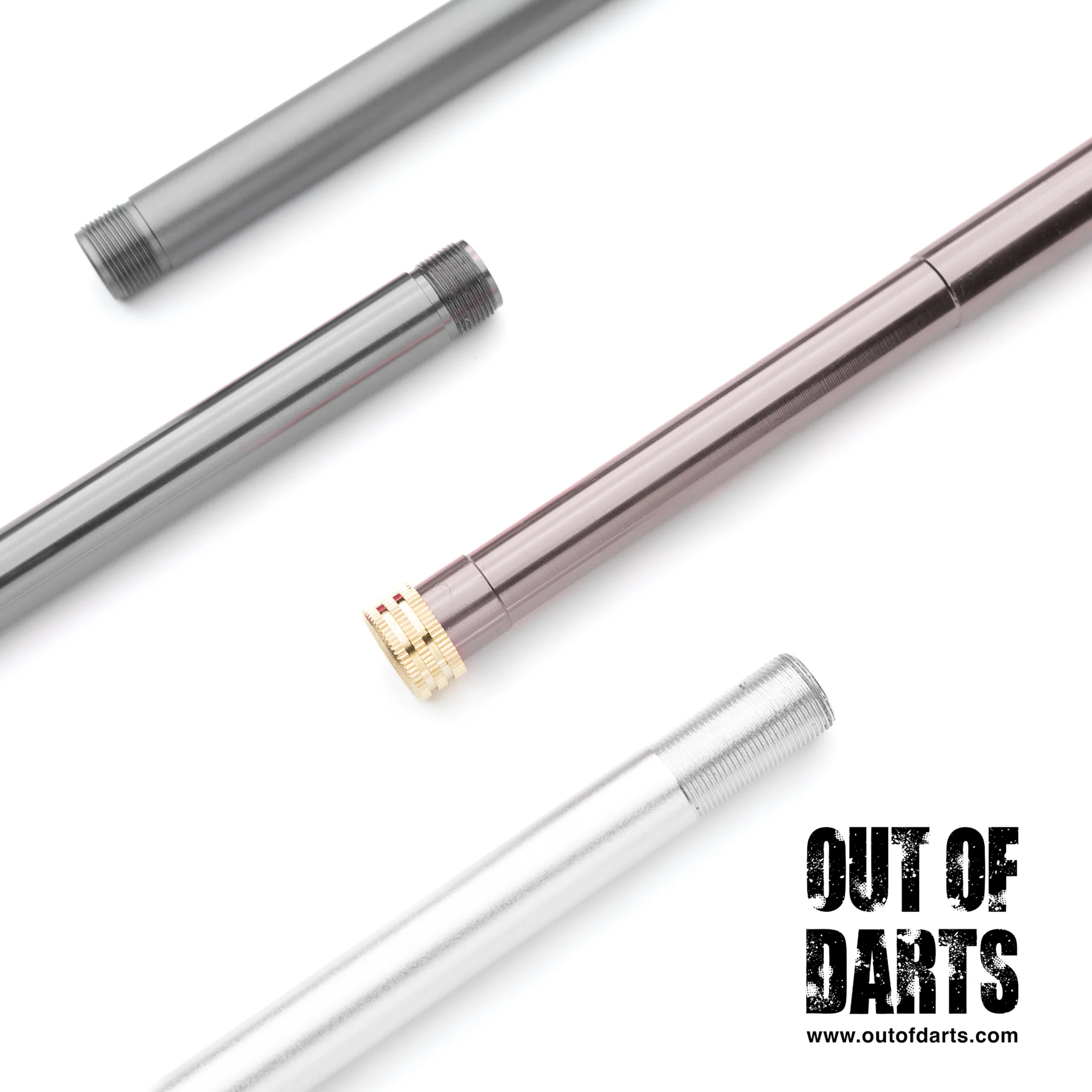

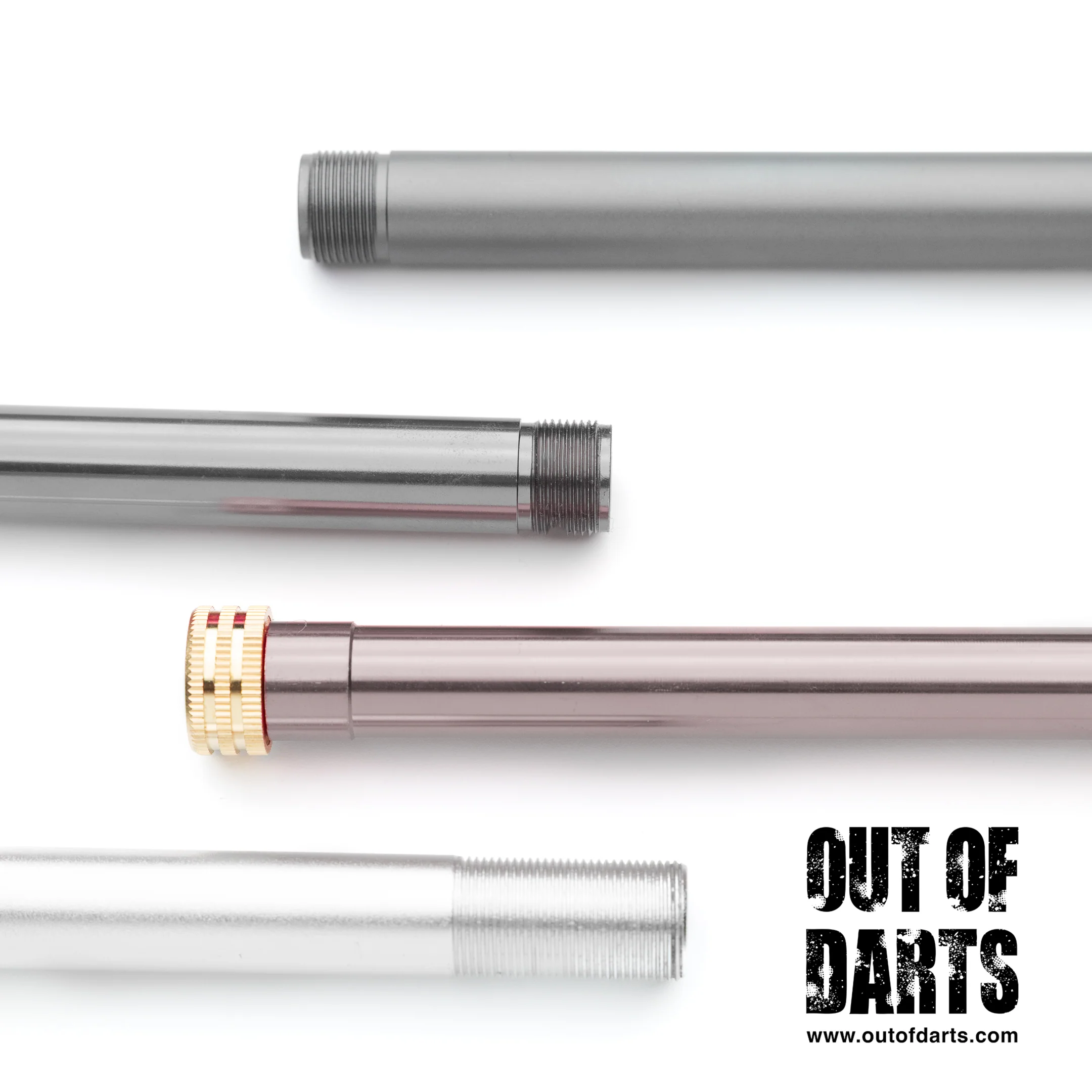

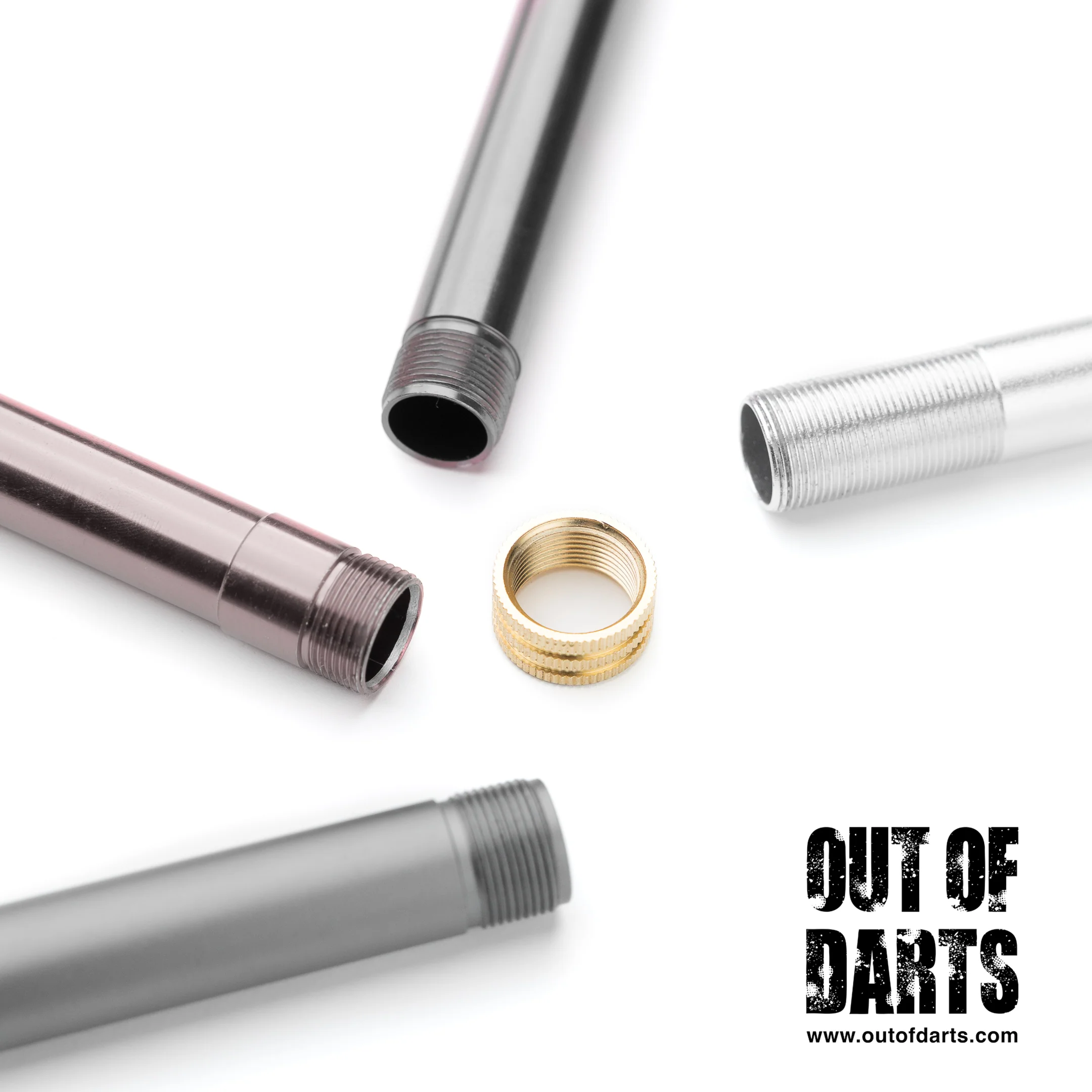

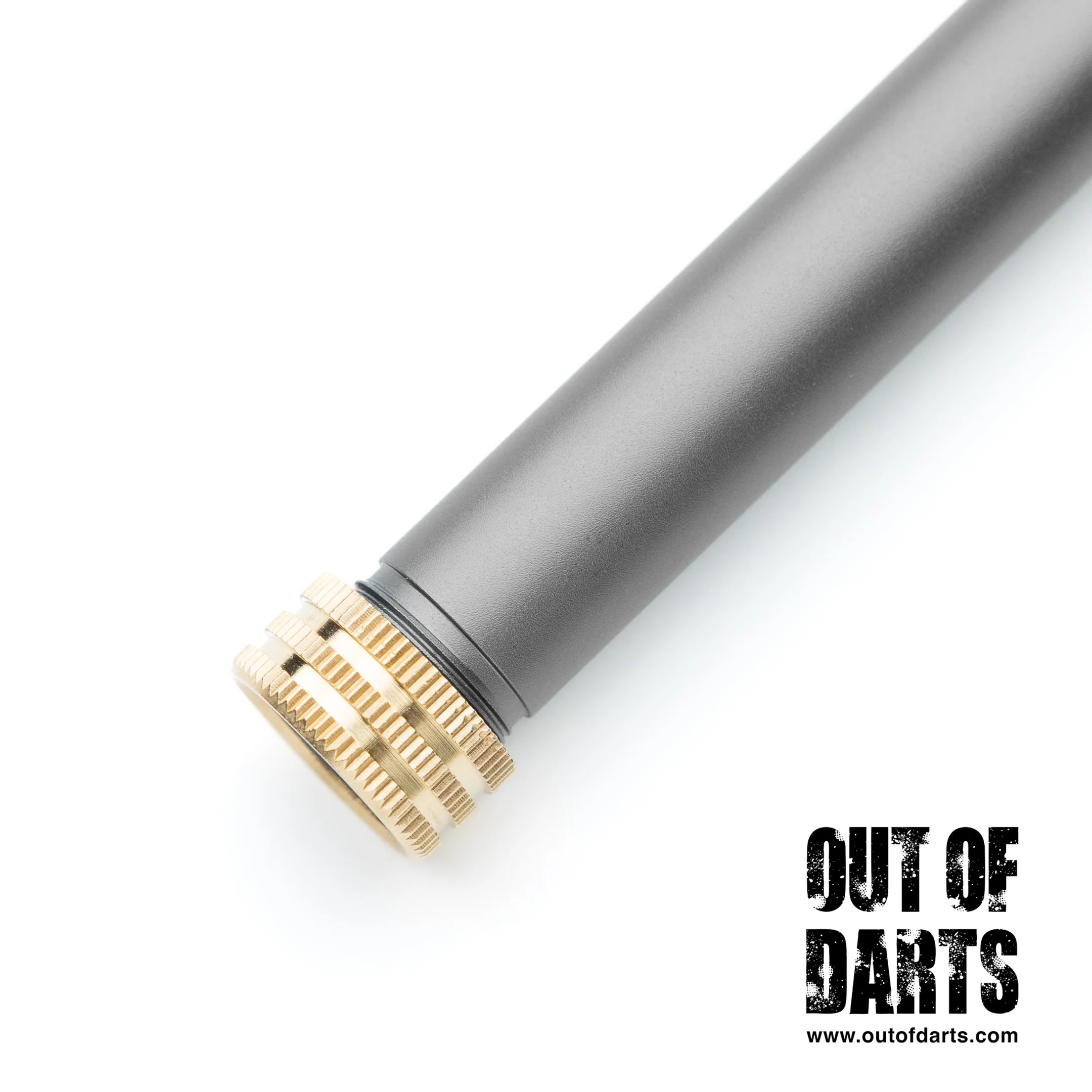

This M16 x 10mm Heat-Set Insert is a brass threaded insert custom-ordered and sourced to accept all commonly available threaded-breech barrels, like the barrels included in newer Worker springers. Featuring exaggerated serrated knurling, this part is designed to be locally melted into custom plastic breeches so other spring-powered blasters can install threaded-breech barrels instead of standard hobby barrels.

FEATURES:
• M16 x 1mm Heat-Set Insert
• Convert standard springers to threaded-breech barrels
• Makes reliable, repeatable threaded joint
• Designed for Worker threaded barrels
• Compatible with all common threaded barrels
• Requires modified or custom-designed breech part

INCLUDES:
• 1 M16 x 1mm Heat-Set Insert

3D DESIGN NOTES:
• 20-20.5mm hole diameter, 10mm deep

SPECS:
• Material: Brass
• Dimensions:
     • Thread Diameter: M16
     • Thread Pitch: 1mm
     • Length: 10mm
     • Diameter: 20mm
• Weight: 8.1g
• SKU: HW-HEAT SET INSERT_16MM
